Overview

RevDroid is a full-stack, self-hostable platform that pairs a local analysis agent with a web dashboard and an AI hunt agent. It is built for bug bounty hunters, mobile pentesters, and AppSec engineers who need to go from an APK to a credible, submittable finding quickly.

The product ships as full source for three independent components you run yourself:

How it works

Architecture

The browser is paired with both the cloud backend and the local agent. When the AI needs data about an APK, the backend emits a tool call, the browser executes it against the local agent, and posts the result back — so analysis data reaches the LLM without the APK being uploaded.

Prerequisites

Install these before you begin. Static analysis needs Java and the Android platform-tools; the AI features need a MongoDB instance and provider keys.

Requirement	Used by	Notes
Node.js ≥ 18	all three apps	LTS recommended. Verify with node -v.
Java (JDK)	agent	Required by apktool and keytool. Verify with java -version.
Android platform-tools	agent	adb on your PATH, or set ADB_PATH. Needed for device features and pulling installed APKs.
MongoDB	backend	Local install or a hosted connection string (e.g. MongoDB Atlas).
Google OAuth client	backend	Client ID + secret from the Google Cloud Console for sign-in.
OpenRouter API key	backend	For the AI agent. Create one at openrouter.ai/keys. Billed by usage — see AI model & costs.

Installation — 1 · Local agent

You will run three processes. The agent and backend should be up before you use the dashboard.

cd agent
npm install        # also downloads pinned tools (apktool) with sha256 verification
npm start

On first boot the agent generates a pairing token, prints it in the terminal, and stores it at ~/.revdroid/agent.json (file mode 600). It listens on http://127.0.0.1:8071 and accepts browser requests only from the dashboard origin. Keep this terminal open — you'll copy the token in step 4.

Installation — 2 · Backend

cd backend
npm install
cp .env.example .env      # then edit .env — see Configuration below
npm run dev               # or: npm start

Open backend/.env and fill in every value. At minimum you must set MONGO_URI, a strong JWT_SECRET, the Google OAuth pair, and OPENROUTER_API_KEY.

Installation — 3 · Frontend

cd frontend
npm install
cp .env.example .env.local   # sets NEXT_PUBLIC_API_URL=http://localhost:8070
npm run dev                  # http://localhost:3000

The dashboard is now available at http://localhost:3000.

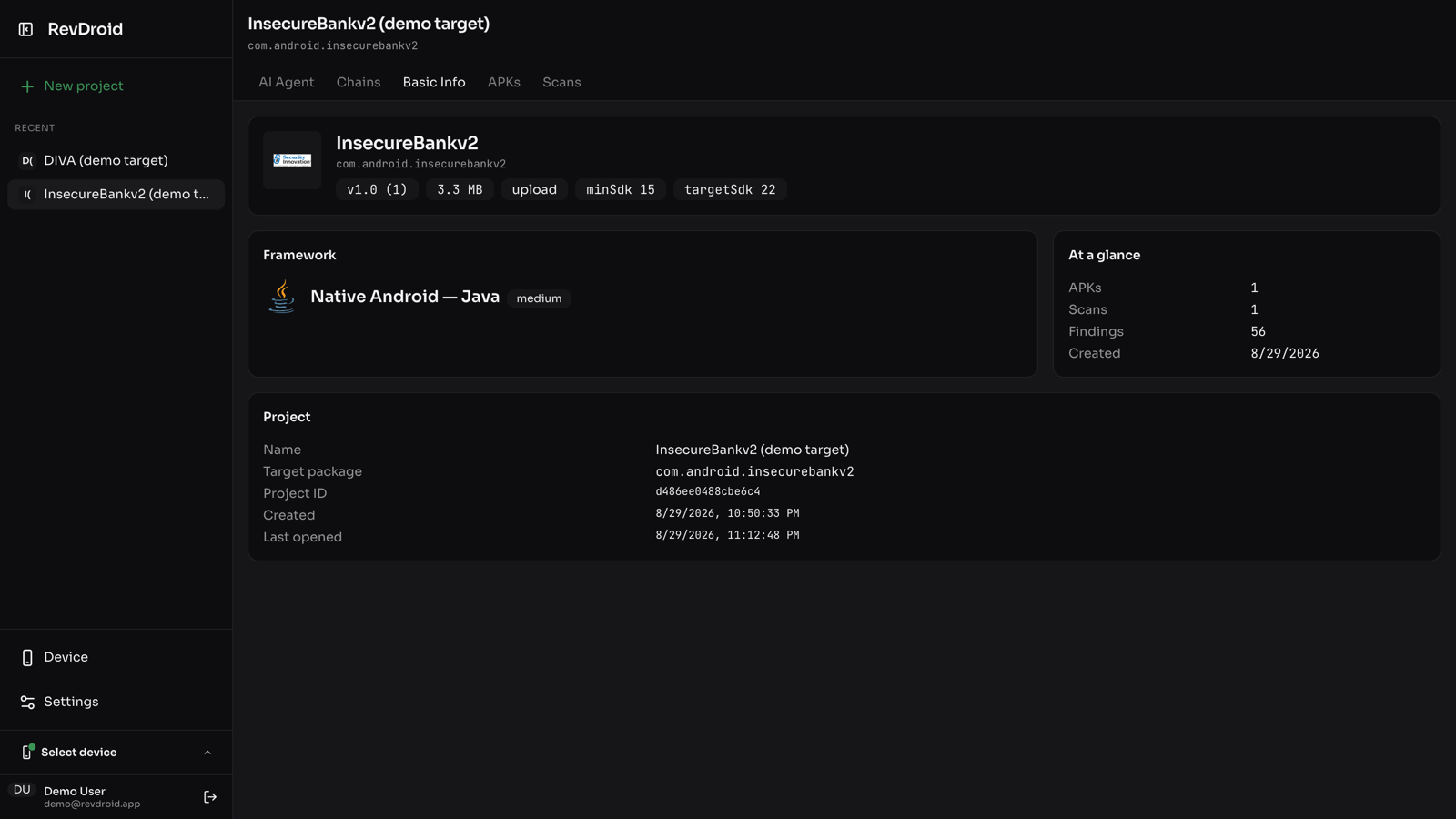

Installation — 4 · Pair & sign in

Configuration — Backend variables

Set these in backend/.env (copy from backend/.env.example).

Variable	Required	Description
PORT	no	API listen port. Default 8070.
MONGO_URI	yes	MongoDB connection string, e.g. mongodb://localhost:27017/revdroid.
JWT_SECRET	yes	Random string ≥ 32 chars. The server will not start without a strong value.
JWT_EXPIRES_IN	no	Token lifetime. Default 7d.
GOOGLE_CLIENT_ID	yes	Google OAuth client ID.
GOOGLE_CLIENT_SECRET	yes	Google OAuth client secret.
GOOGLE_CALLBACK_URL	yes	OAuth redirect, e.g. http://localhost:8070/auth/google/callback. Must match the Google console.
FRONTEND_URL	yes	Dashboard origin used for post-login redirect, e.g. http://localhost:3000.
OPENROUTER_API_KEY	yes*	Key for the AI agent. *Required for AI chat; static scanning works without it.
AI_MODEL	no	OpenRouter model slug. Default anthropic/claude-sonnet-4.5.

Configuration — Agent variables

All optional. Set them in your shell before npm start if the defaults don't fit.

Variable	Default	Description
PORT	8071	Local listen port.
HOST	127.0.0.1	Bind address. Do not expose this to your network.
ADB_PATH	adb	Full path to the adb binary if it isn't on PATH.
JAVA_PATH	java	Full path to the java binary if it isn't on PATH.
ALLOWED_ORIGINS	http://localhost:3000,http://127.0.0.1:3000	Comma-separated CORS allowlist. Add your deployed dashboard origin here.

Rotate the pairing token at any time (you'll need to re-pair):

cd agent
node src/index.js --rotate-token

Configuration — Frontend variables

Variable	Required	Description
NEXT_PUBLIC_API_URL	yes	Base URL of the backend API, e.g. http://localhost:8070.

Configuration — AI model & costs

The AI agent calls an LLM through OpenRouter using your own API key. Set AI_MODEL to any OpenRouter model slug; the default is anthropic/claude-sonnet-4.5. You can switch to cheaper models such as anthropic/claude-haiku-4.5, openai/gpt-4o-mini, or deepseek/deepseek-chat.

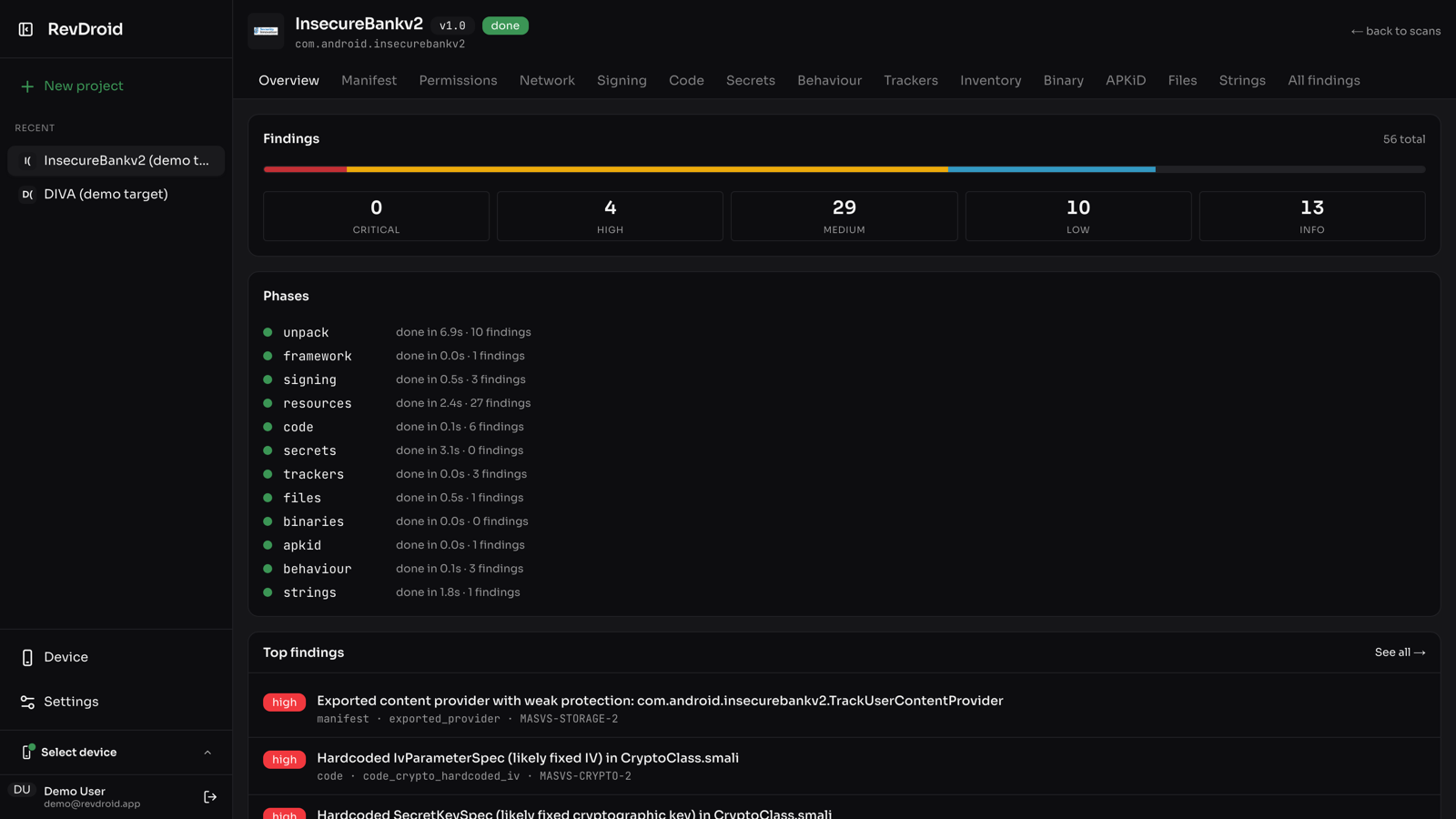

Using RevDroid — Run a scan

Inside a project, add an APK (upload a file or pull one from a device), then click Run scan. The agent executes the pipeline and streams each phase to the UI in real time:

1. unpack — apktool d into smali, resources, and AndroidManifest.xml
2. framework — detect Flutter, React Native, Xamarin, Unity, or native (+ ABIs)
3. signing — certificate chain and signature algorithm analysis
4. resources — sensitive files, config bundles, and URLs in assets/res
5. code — weak crypto, SSL/TLS bypass, insecure RNG, WebView misconfig, reflection, SQLi patterns, debug logging
6. secrets — hardcoded API keys and credentials (AWS, GCP, Stripe, Slack, GitHub, Twilio, private keys, OAuth tokens)
7. trackers — 40+ known third-party SDKs
8. files — inventory by type, suspicious files, oversized files
9. binaries — ELF mitigations (NX, PIE, RELRO, stack canary, stripped, RPATH)
10. apkid — commercial packers, obfuscators (ProGuard/R8/DexGuard), anti-debug stubs
11. behaviour — high-signal Android behaviours (IMEI/IMSI, contacts, sensors, encryption, native loads)
12. strings — extract and dedupe smali + binary strings into a searchable index

Using RevDroid — Read findings

Each scan opens to an overview with a severity chart and per-phase status, plus dedicated tabs: findings (filterable), manifest, permissions, network & deep-links, code, secrets (reveal/copy), signing, behaviour, trackers, file inventory, binaries, APKiD, and strings. Findings update live as phases complete.

Using RevDroid — AI hunt agent

Open the AI chat for a project and ask it to hunt, e.g. "What's the most promising exploit chain here?" The agent runs a multi-turn tool-calling loop (up to 25 hops) and can call these read-only tools against your local agent: get_project_summary, list_scans, get_scan_summary, list_findings, get_finding, get_manifest_summary, get_framework, get_secrets, search_strings, and read_smali_file.

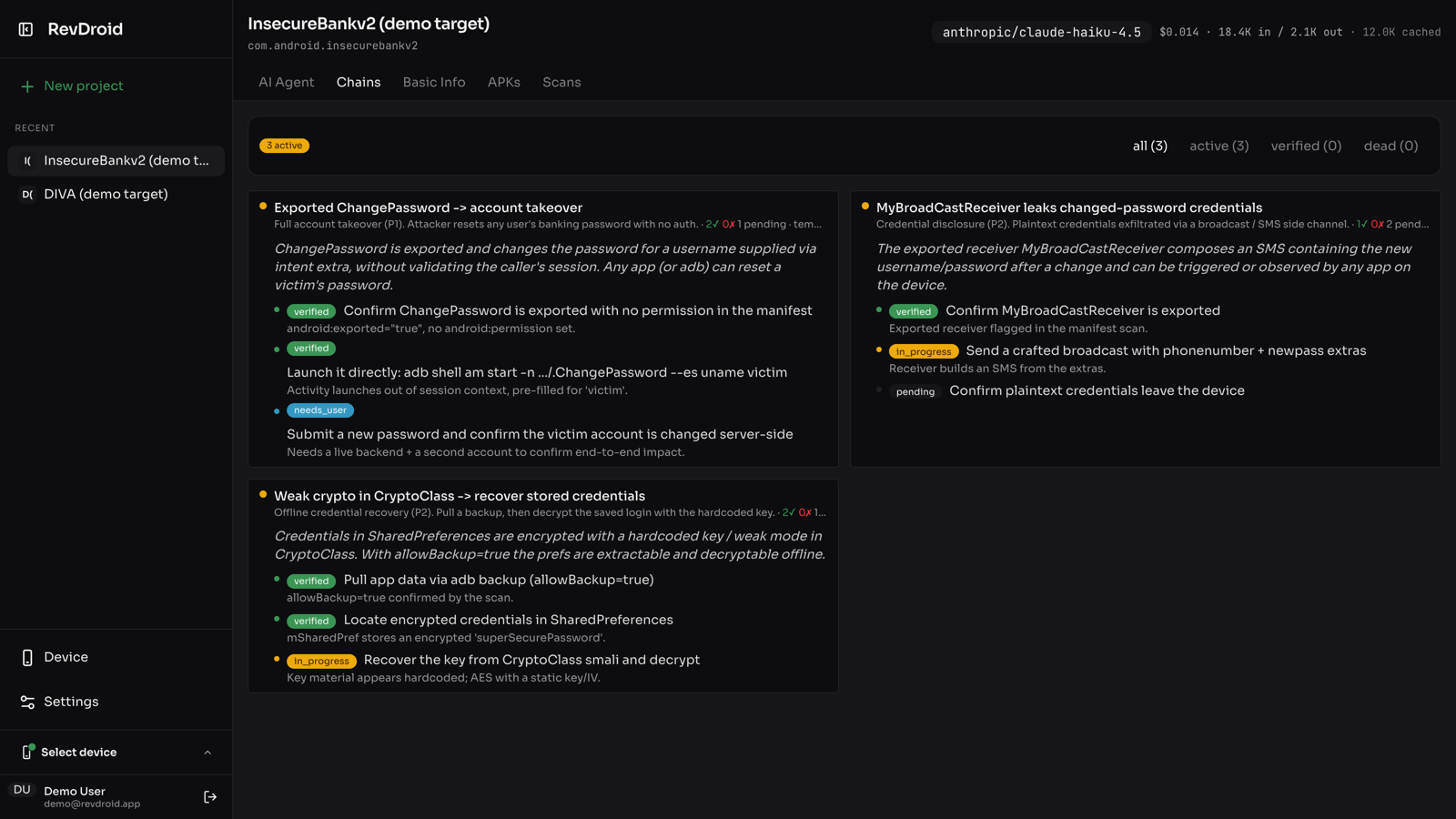

Exploit chains. The agent tracks bug-bounty hypotheses as multi-step chains (hypothesis → steps with status → impact), seeded from 10+ canonical Android templates such as open Firebase RTDB, unrestricted Maps key, WebView JS-interface RCE, deep-link account takeover/IDOR, exported-provider disclosure, JWT weakness, SSRF via image proxy, and purchase race conditions. Each conversation shows hop count, model, and running cost.

Using RevDroid — Device tooling

With a device connected over USB or Wi-Fi, the agent unlocks: device info and security posture (bootloader, verified boot, SELinux, debuggable), an installed-apps browser with icons, a live screen view with remote input (tap / swipe / key), and the ability to pull an installed APK straight into a project. Connect over Wi-Fi from the dashboard by entering the device host and port (default 5555).

Feature reference

Deploying to production

For a hosted deployment, the backend and frontend run in the cloud while each user still runs the agent locally (that is the privacy model — the agent must be on the machine that holds the APK).

• Backend: deploy to any Node host (Render, Railway, a VPS, etc.). Set all backend variables as real secrets. Point MONGO_URI at a managed MongoDB. Update GOOGLE_CALLBACK_URL and FRONTEND_URL to your production domains and register the callback in the Google console.
• Frontend: deploy to Vercel or any Next.js host. Set NEXT_PUBLIC_API_URL to your production backend URL.
• Agent CORS: add your production dashboard origin to the agent's ALLOWED_ORIGINS so the deployed dashboard can reach the local agent.
• HTTPS note: a browser served over HTTPS talking to a plain-HTTP localhost agent can trigger mixed-content restrictions. See the agent notes for the local-certificate approach.

Troubleshooting

Symptom	Fix
Backend exits immediately with a JWT_SECRET error	Set a strong JWT_SECRET (≥ 32 chars). Generate one with openssl rand -hex 32.
Dashboard can't reach the agent / pairing fails	Confirm the agent is running on 127.0.0.1:8071, the token matches, and your dashboard origin is in the agent's ALLOWED_ORIGINS.
adb not found	Install Android platform-tools and put adb on PATH, or set ADB_PATH to the full binary path.
Unpack phase fails	Ensure a JDK is installed (java -version). apktool and keytool require Java.
Google sign-in fails	Check the OAuth client ID/secret and that GOOGLE_CALLBACK_URL exactly matches an authorized redirect URI in the Google console.
AI chat returns a config error	Set OPENROUTER_API_KEY in backend/.env and restart the backend.
No devices listed	Run adb devices in a terminal; authorize the USB debugging prompt on the phone, or connect over Wi-Fi from the dashboard.

Security & responsible use

• The agent binds to 127.0.0.1 and authenticates every route (except health) with a bearer token stored at mode 600. Do not expose it to your network.
• Set a unique, strong JWT_SECRET in production; the backend enforces this at startup.
• Keep your .env files out of source control. The project ships .env.example templates only.
• APK bytes stay on the machine running the agent; only findings and small code snippets reach the AI provider you configure.

FAQ

Does my APK get uploaded anywhere?

No. Decompilation and scanning run locally through the agent. Only findings and small code snippets are used by the AI layer.

Do I need a paid AI key?

The AI features use an LLM via your own OpenRouter key and incur usage costs. Static analysis works without any key.

Do I need a physical device?

No — you can upload an APK directly. A connected device unlocks pulling installed apps and the device tooling.

Which frameworks are supported?

It detects and adapts to Flutter, React Native, Xamarin, Unity, and native Android apps.

Is iOS supported?

No. RevDroid is Android-specialized by design.

Can I self-host the whole thing?

Yes. You receive full source for all three components and host them yourself. The agent always runs locally on each user's machine.

Support

If you run into a problem not covered here:

• Re-check the Prerequisites and Troubleshooting sections.
• Include your Node version (node -v), OS, which component is failing, and any terminal output when you contact support.
• Support is provided through your CodeCanyon item's Comments tab and the author's support channel listed on the item page.
